Bottle/Can wash, fill and capping 3 in 1 machine
Description
This machine is developed by applying lots of new technologies, new techniques and new structures with the quality ranking leading in the industry.
| Model | XGF18-12-6 | XGF18-18-6 | XGF24-24-8 | XGF32-32-12 | XGF40-40-12 | XGF50-50-15 |
| Wash Heads | 18 | 18 | 24 | 32 | 40 | 50 |
| Filling Heads | 12 | 18 | 24 | 32 | 40 | 50 |
| Capping Heads | 6 | 6 | 8 | 12 | 12 | 15 |
| Production Capacity(500ml)(b/h) | 4000 | 6000 | 10000 | 15000 | 18000 | 24000 |
| Total Power(kW) | 4.68 | 5.18 | 6.58 | 8.18 | 9.18 | 9.68 |
| Applicable for | juice,mineral water, purified water etc. |
| Place of Origin | Jiangsu, China (Mainland) |
| Voltage | 220V/380V/440V or customized |
| Power | 4.4~10KW |
| Dimension | Customized |
| Weight | According to different model |
| Capacity | 300-8000bph |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Bottle | Glass/Plastic Bottle |
| Bottle Size | 350ml-1500ml |
| Suitable bottle | Plastic, glass |
| Application | Beverage filling |
| Certification | CE SGS ISO |
| Warranty | 1 year |
Features:
the neck of bottle is clamped between the bottle clamping plate and upper plate, and it is driven by star wheel, then bottle clamp plate may rotate to convey bottle, thus achieving fully automatic bottle washing.
Advantage:
1.low wear 2.simple bottle replacement
3.accurate and stable conveying 4.stable conveying and scientific procedures.
Technical features:
Ventilation mechanism
Fan can blow the bottle clap plate of the starwheel drive I, then bottle clamp plate can convey the bottles to the bottle washing machine.

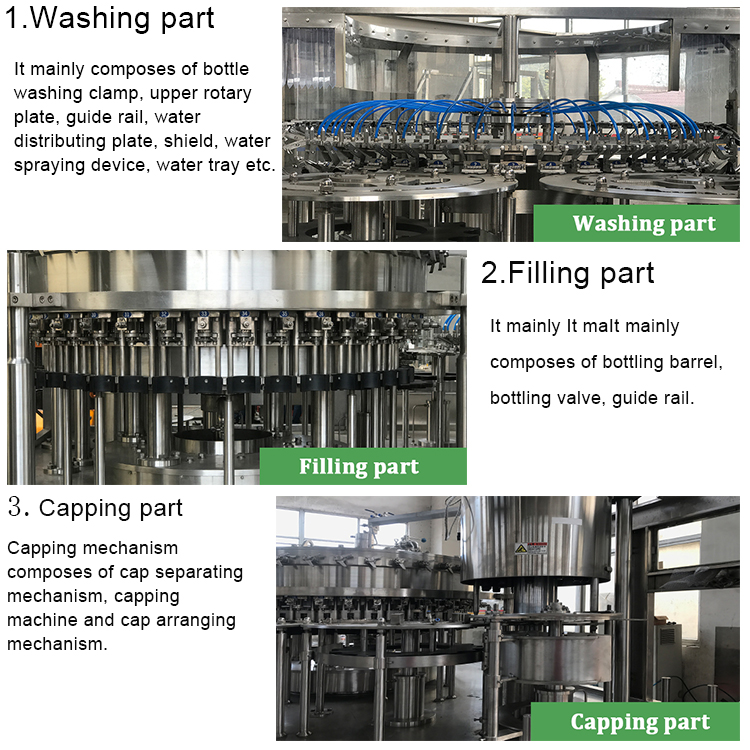

1. Overturning mechanism of bottle washing machine
Bottle washing clamp rotates with the upper rotary plate, and open the bottle mouth clamp with elastic distortion when contacting the bottle feeding starwheel, which can clamp the bottle neck, then overturns at 180° along the guide rail, bottle mouth may become downwards for cleaning and drying the bottle with water, then overturn for 180°, bottle mouth becomes upwards and then conveyed with the starwheel; shield can prevent sprinkling of cleaning water; water distributing plate can deliver the cleaning water from the still parts to the rotary parts.
2. Bottling mechanism
Bottle is conveyed to the bottling machine with the clamp plate of starwheel drive IV, bottling bottle clamp plate supports the bottle neck and rotates together with the bottling, and ascend along the guide rail and then open the bottling valve for bottling, after finishing bottling, it descend and loose the bottling valve, bottling valve may automatically close. Bottle is discharged from the bottling machine along the clamp plate of starwheel drive V.
3.Capping mechanism
Bottle is conveyed into the capping machine with 3# starwheel and then is clamped with the bottle clamping block; the cap is arranged by the cap arranging mechanism and then is delivered to the cap separating mechanism from the lower cap tank; cap separating mechanism can separate the caps, and capping head may ascend and remove the cap and press it onto the bottle mouth with cam; under the drive of gear, capping head tighten the cap on the bottle mouth along the shaft, and keep constant capping moment; the well capped bottle is delivered out with 4# starwheel. The capping machine is connected with cap separating mechanism, lower cap tank, cap arranging mechanism with harmonious combination through several movements for delivering bottle, delivering cap, holding cap and capping.
